Measuring for New Countertops is Easier Than You Think! With just a pencil, tape measure, and a quick sketch, you’ll be ready to get started. Follow these easy steps to make sure we get the most accurate layout and pricing for your space:
Tools Needed:
- Tape Measure
- Pen or Pencil
- Paper
- Camera
Steps:
- Draw a diagram of your countertop space.
- Include cutouts for the sink, cooktop, prep sink, etc.
- Mark the wall locations in your layout.
- Measure the length of your countertops from wall to wall (in inches).
- Label each section with its correct length on your drawing.
- Measure the depth of the countertops from the wall to the front edge.
- Repeat for each section—don’t forget bar tops, islands, and peninsulas!
- Measure the sink base cabinet interior:
-
-
-
Open the cabinet doors and measure the interior width from side to side.
-
Then measure the depth from the back wall to the front inside edge.
-
Note: your new sink should be just slightly smaller than the width. For example, if the interior width is 30″, aim for a sink around 29.5″ wide.
-
-
-
- Take a few photos of your space and send with the drawing to our designers.

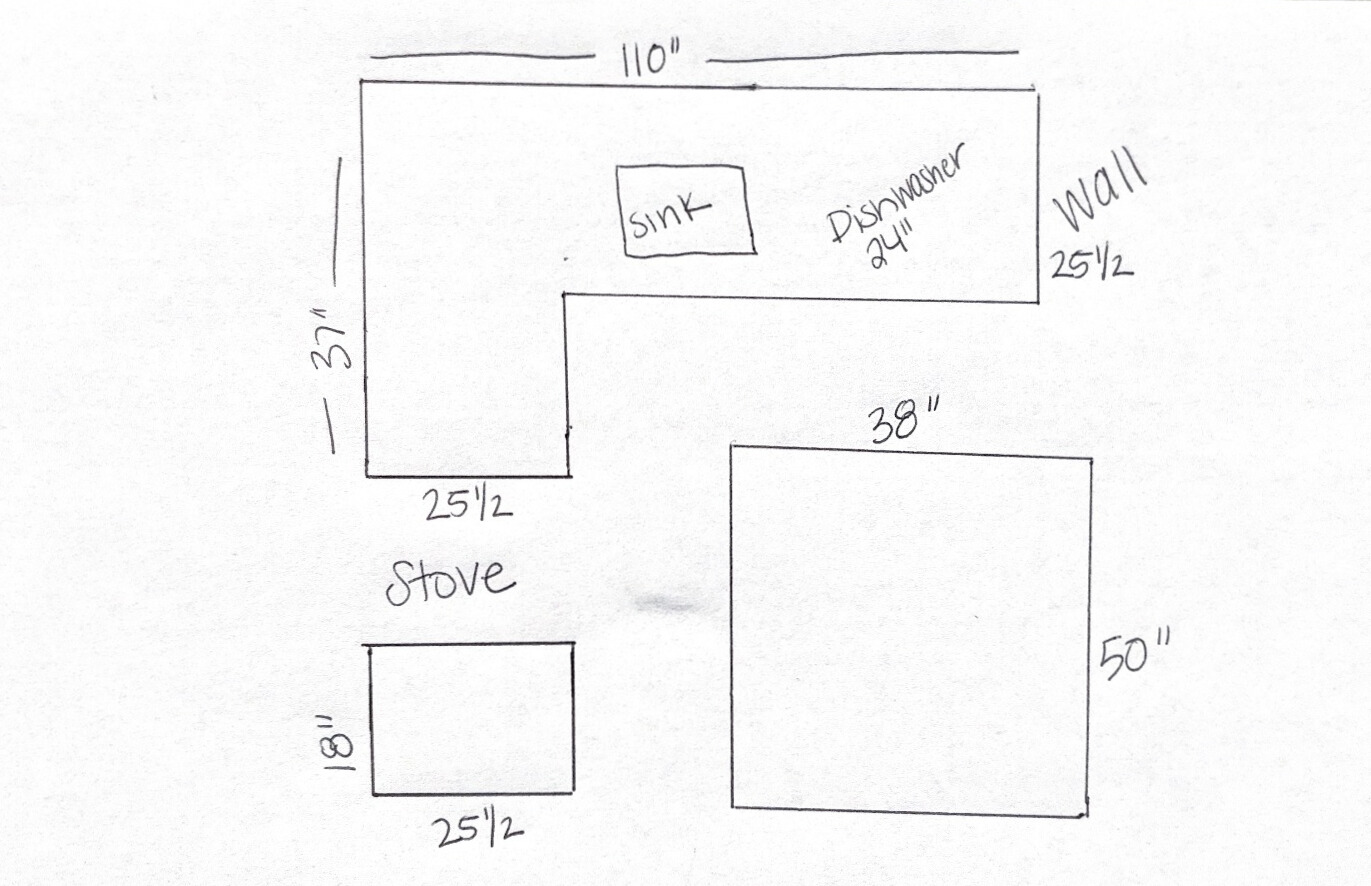

Example
- Slab Size: The typical slab size for granite can vary, but quartz slabs are man-made and tend to follow standard sizes. Common quartz slab dimensions include:
- 130″ x 60″
- 130″ x 63″
- 138″ x 78
- Depth: The standard depth for a kitchen countertop is typically 25.5 inches, which includes a standard 1.5-inch overhang on 24-inch base cabinets. A vanity countertop is typically 22.5 inches, which includes a standard 1.5- inch overhang on 21- inch base.
- Backsplash: There are several different options for backsplash, depending on your style and budget. The most common choice is a 4-inch backsplash, which offers a clean, simple look and provides basic protection for your walls.
- Full-Height Splash: To measure for a full-height backsplash, start by measuring the length of your countertop where you want the backsplash installed. Then, measure from the top of the countertop to the bottom of the upper cabinets or range hood. The typical height between the countertop and upper cabinets is 18 inches. Make sure to note how many outlet cutouts or other special cutouts are needed.
- Overhang: For comfortable seating at a kitchen island, an overhang depth of 12 to 15 inches is ideal to provide ample legroom. For granite countertops, a 10″ overhang typically does not require support, but anything over 10″ will need steel supports. Quartz can usually support up to a 12″ overhang without additional support; anything beyond that will require steel supports.

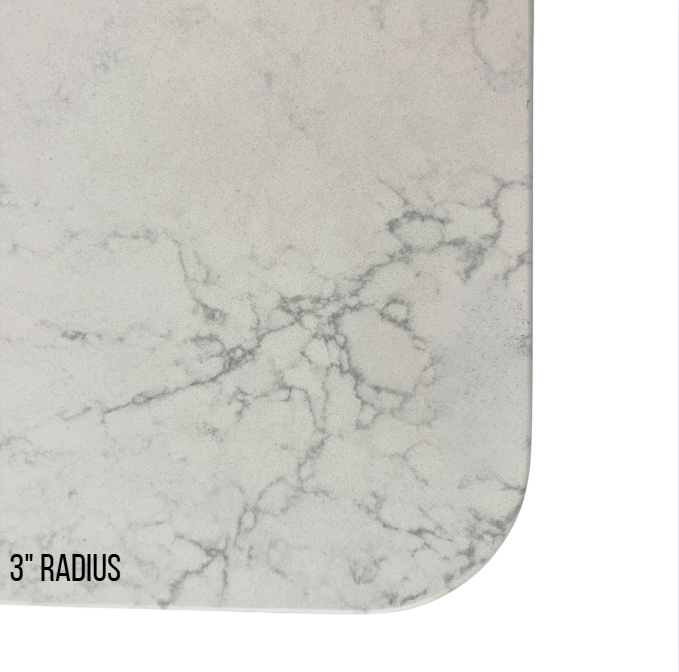

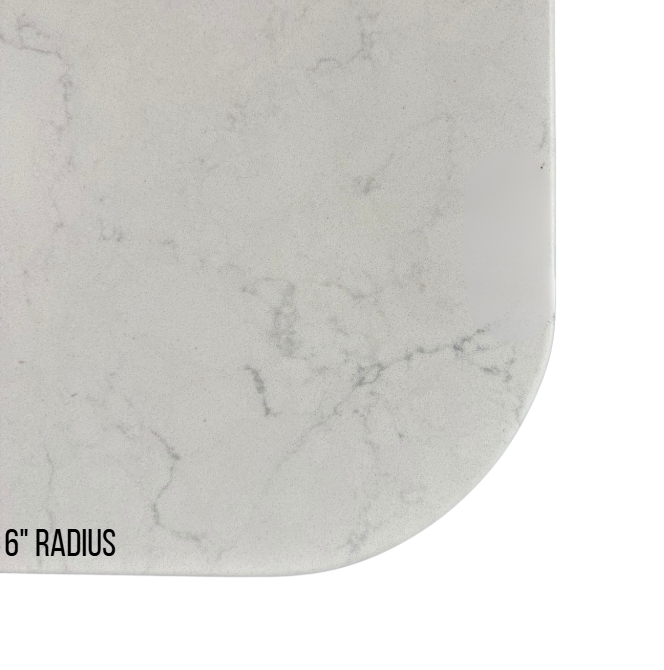

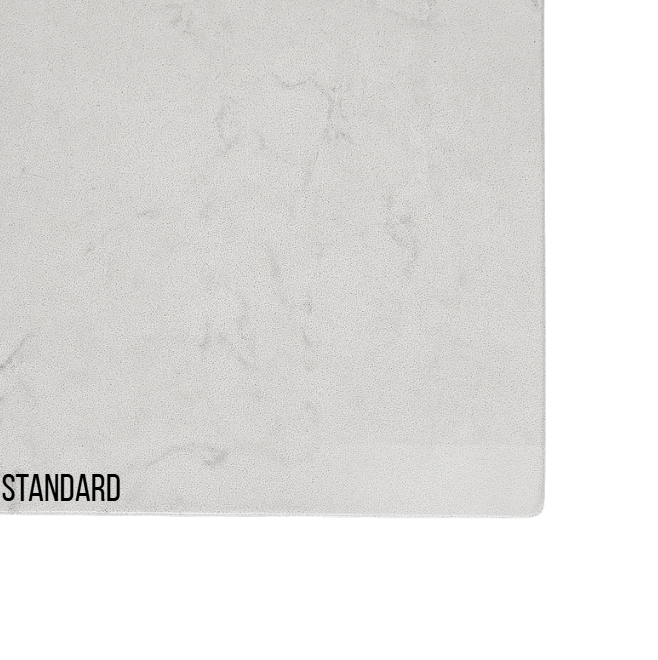

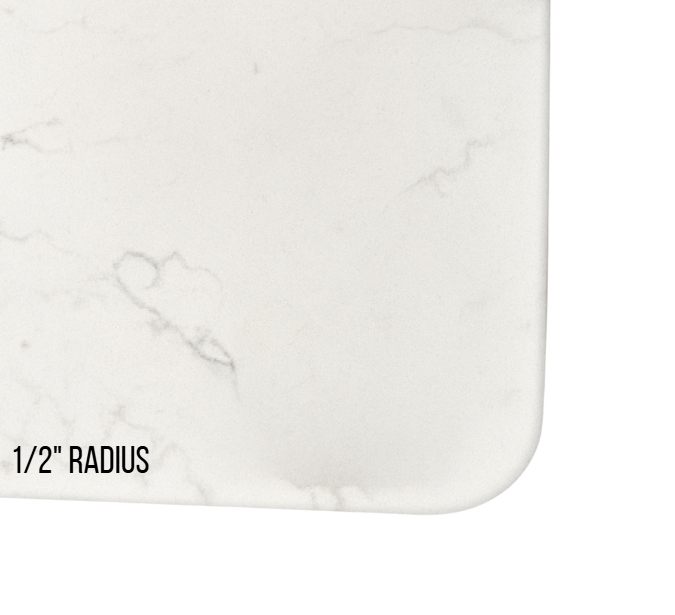

- Radius: There are several options available when selecting countertop radius corners. Radius corners refer to the degree of roundness on the exposed edges of the countertop, typically found in high-traffic areas or walkways to enhance both safety and appearance.

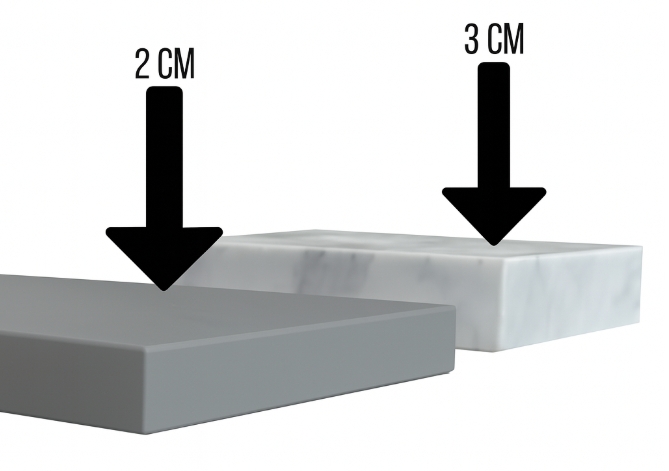

Between the two slab thicknesses, 3cm (1 1/4″) is the industry standard for countertops, offering enhanced durability and a more substantial appearance. 2cm (3/4″) slabs are typically used for vertical applications such as backsplashes and custom edge profiles, where a lighter and more flexible material is preferred.

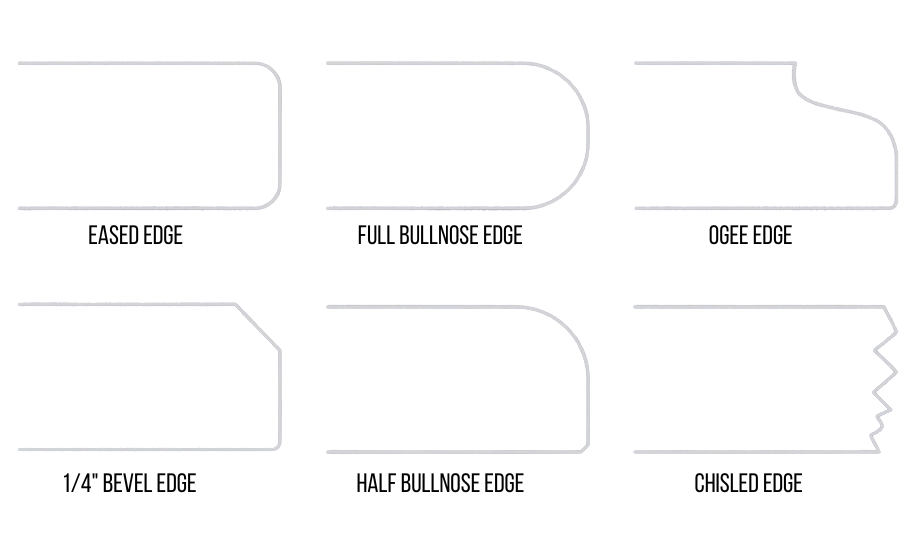

- Eased: A slightly rounded corner that softens the sharpness of a square edge. It offers a clean, modern aesthetic with added safety and simplicity
- Beveled: Features an angled cut along the top edge, creating a crisp, geometric appearance.
- Full Bullnose: Completely rounded from top to bottom, giving a smooth and traditional finish.
- Half Bullnose:Rounded at the top with a flat underside.
- Ogee: An elegant, S-shaped curve that adds a touch of sophistication,often chosen for classic style.
- Chiseled:A rugged, natural edge that mimics stone breakage,only available on granite.

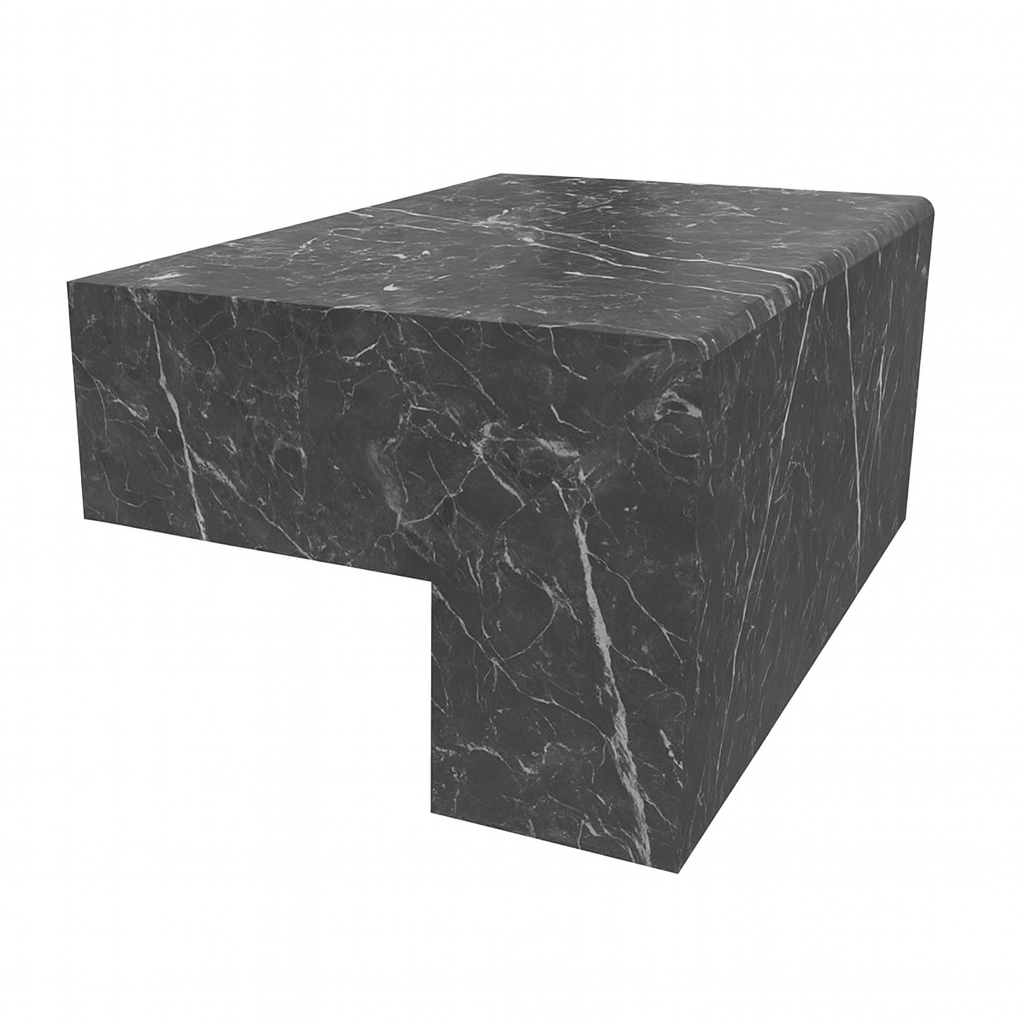

- Miter Edge: A miter edge joins two 45-degree cuts to create a seamless 90-degree corner, giving the countertop a thick, modern look with continuous pattern flow.
